Two-dimensional simulation of grain structure growth within selective laser melted AA-2024

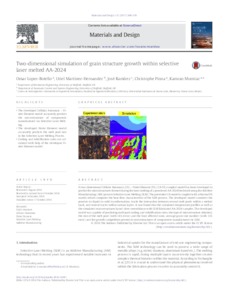

López Botello, Omar Eduardo y Martínez Hernández, Uriel y Ramírez, José y Pinna, Christophe y Mumtaz, Kamran (2017) Two-dimensional simulation of grain structure growth within selective laser melted AA-2024. Materials & Design, 113. pp. 369-376. ISSN 02641275

Vista previa

Texto 73.pdf - Versión Publicada Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (1MB) | Vista previa

Resumen

A two-dimensional Cellular Automata (CA) – Finite Element (FE) (CA-FE) coupledmodel has been developed to predict the microstructures formed during the lasermelting of a powdered AA-2024 feedstock using the Additive Manufacturing (AM) process Selective LaserMelting (SLM). The presented CAmodel is coupled with a thermal FE model, which computes the heat flow characteristics of the SLM process. The developed model considers the powder-to-liquid-to-solid transformation, tracks the interaction between several melt pools within a melted track, and several tracks within various layers. It was found that the calculated temperature profiles as well as the simulated microstructures bared close resemblance with SLM fabricated AA-2024 samples. The developed model was capable of predicting melt pool cooling and solidification rates, the type of microstructure obtained, the size of the melt pool (with 14% error) and the heat affected zone, average grain size number (with 12% error) and the growth competition present in microstructures of components manufactured via SLM. © 2016 The Authors. Published by Elsevier Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/).
