A hamiltonian approach to fault isolation in a planar vertical take–Off and landing aircraft model

Rodríguez Alfaro, Luis Humberto y Alcorta Garcia, Efrain y Lara, David y Romero, Gerardo (2015) A hamiltonian approach to fault isolation in a planar vertical take–Off and landing aircraft model. International Journal of Applied Mathematics and Computer Science, 25 (1). pp. 65-76. ISSN 2083-8492

Vista previa

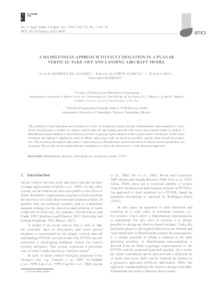

Texto 29810.pdf - Versión Publicada Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (436kB) | Vista previa

Resumen

The problem of fault detection and isolation in a class of nonlinear systems having a Hamiltonian representation is considered. In particular, a model of a planar vertical take-off and landing aircraft with sensor and actuator faults is studied. A Hamiltonian representation is derived from an Euler–Lagrange representation of the system model considered. In this form, nonlinear decoupling is applied in order to obtain subsystems with (as much as possible) specific fault sensitivity properties. The resulting decoupled subsystem is represented as a Hamiltonian system and observer-based residual generators are designed. The results are presented through simulations to show the effectiveness of the proposed approach.
